Using RGB for Color Values

CSS uses two functions to express color properties using RGB. The first function is rgb and the second rgba.

Both functions have three input values. One for red, one for green and one for blue. These use the number range of 0 to 255.

The rgb function syntax

CSS rgb color function syntax.

Examples of the rgb function

  •       rgb(0,0,0) black
  •       rgb(255,255,255) white
  •       rgb(255,0,0) red
  •       rgb(0,255,0) green
  •       rgb(0,0,255) blue
  •       rgb(255,0,255) magenta
  •       rgb(0,255,255) cyan
  •       rgb(255,255,0) yellow
  •       rgb(255,215,0) gold
  •       rgb(192,192,192) silver

The rgba function syntax

The rgba has one additional value to express opacity which is called alpha or the alpha channel. It is a decimal value from 0 to 1.

CSS rgba color function syntax.

The rgba is more likely used against a container's background color or a container's background image.

Examples of the rgba function

  •       rgba(0,0,0,1) black 100% opaque.
  •       rgba(0,0,0,.5) black 50% opaque.
  •       rgba(255,255,255,1) white 100% opaque.
  •       rgba(255,255,255,.75) white 75% opaque.
  •       rgb(255,0,0,1) red 100% opaque.
  •       rgb(255,0,0,.25) red 25% opaque.
  •       rgb(0,0,255,1) blue 100% opaque.
  •       rgba(0,0,255,.25) blue 25% opaque.
  •       rgb(0,0,255,0) blue 0% opaque.

Activity:

Objective: To replace hex color values with the rgb function.

Setup:

Copy all the files from the start-03 folder to practice folder and replace if necessary.

The activity's completed file can be found in the completed folder.

Steps:

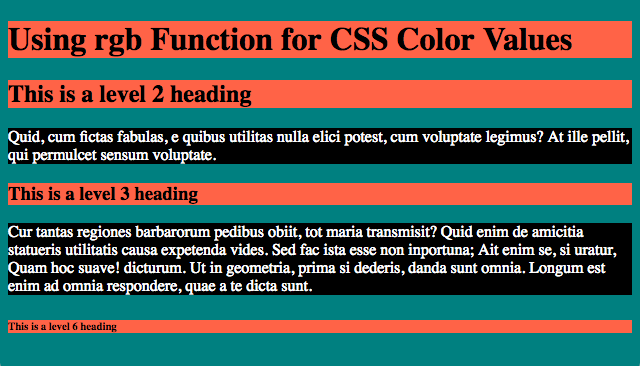

  1. Open the color-rgb.html file in your web browser.

    Practice file in browser at activity start.

  2. Open the color-rgb.css file in your code editor. It has the following contents:

    @charset "UTF-8";
body{
	background-color:#008080;
	color:#fff;
}
h1, h2, h3, h4, h5, h6{
	background-color:#ff6347;/*tomato*/
	color:#000;
}
p{
	background-color:#000;
}

    All these properties are using hex color values.

  3. DIY: Replace all the hex values in the color-rgb.css with rgb function for same colors.

    HINT: Use a color picker tool to help make the conversions. For example Color Minder.

    @charset "UTF-8";
body{
	background-color:rgb(0,128,128);
	color:rgb(255,255,255);
}
h1, h2, h3, h4, h5, h6{
	background-color:rgb(255,99,71);/*tomato*/
	color:rgb(0,0,0);
}
p{
	background-color:rgb(0,0,0);
}

    The changes are shown in bold.

  4. DIY: Validate the color-rgb.css file at W3C CSS Validation service.
